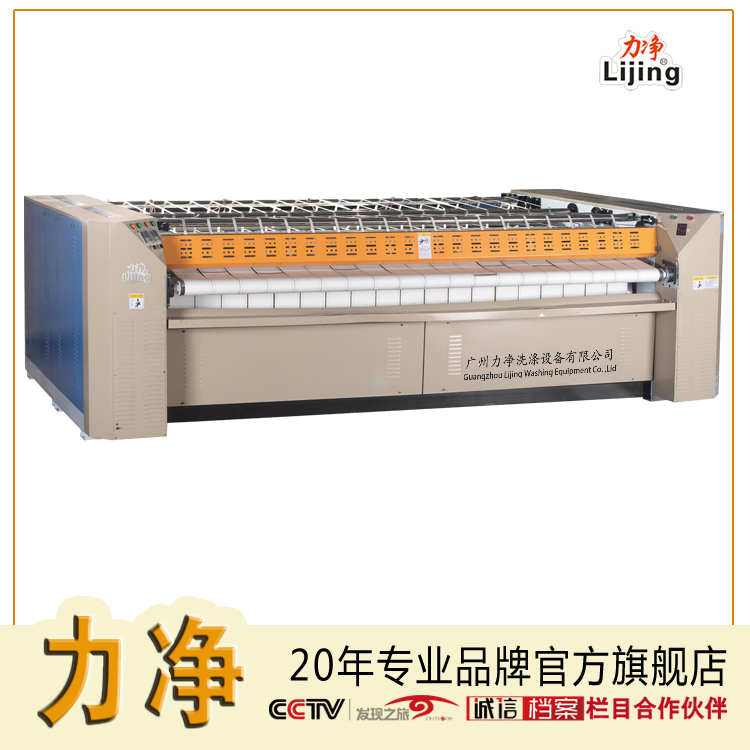

1、For good ironing effect,utilizes fixed ironing groove,rise and fall roller,iron roller from own weight and no compression spring pressing on the ironing groove
2、Selected advance variable frequency speed control system, frequency control of ironing speed, reliable operation.
3、Wide ironing groove heating type. Advance polished finish ironing bed surface, fast heating speed.
4、Built-in enclosed dehumidification system, improve working environment, beautiful design.
5、Adjustable ironing pressure control system, suitable for different kinds of fabrics.
6、Adoptting international advanced drainage system，improves heating efficiency,saves usage cost.
7、Various specification available for selection,roller diameters have 1000,800,and 500mm.Ironing width varies from 2500mm to 3000mm. Roller quantity is available one to two.
| 型號(hào) Model | YZ2-3000 | YZ1-3000 |
|
輥筒長(zhǎng)度(mm) Roller width |
3000 | 3000 |
|
輥筒直徑(mm) Roller diameter |
800 | 800 |
|
送進(jìn)速度(m/min) Ironing speed |
5--20 | 3--12 |
|
總功率(kw) Total power |
7.7 | 4.1 |
|
蒸汽耗量（kg/h) Steam consumption |
200 | 120 |
|
重量(kg) Weight |
7000 | 3800 |
|
外形尺寸（mm） Dimension |
4120×3500×1600 | 4120×2200×1600 |
|
 |
 |
 |
 |
|
|
|
